PES P515 Power Meter Set
PES P515 Power Meter Set
PES P515 Power Meter Set
PES P515 Power Meter Set

PES P515 Power Meter Set

£249.00
VAT included

Fuel your desire for speed.

Exquisite design presents professional performance of stiffness and shifting. Whether it is a cycling gathering on weekend, an exciting cycling tour, or even a training or race with a great sense of achievement, the PES series will always provide you with professional experience, demonstrate excellent performance and allow you to feel the unique passion of competitive cycling.

Chainring Teeth
Crank Length

Usually 15-20 working days for delivery
Compare Add to Wishlist
Overview

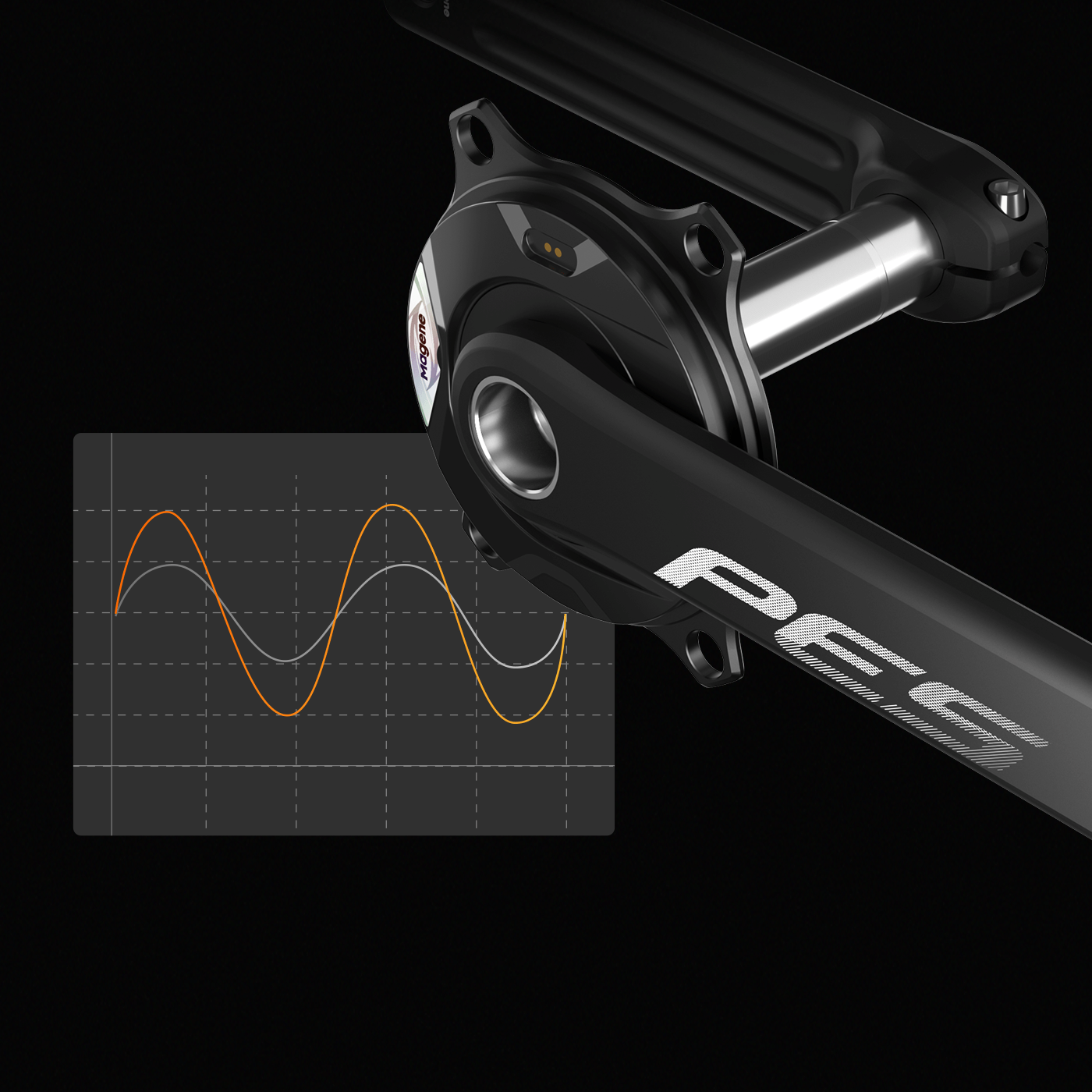

±1% Power Accuracy, Capture Your Every Effort Accurately

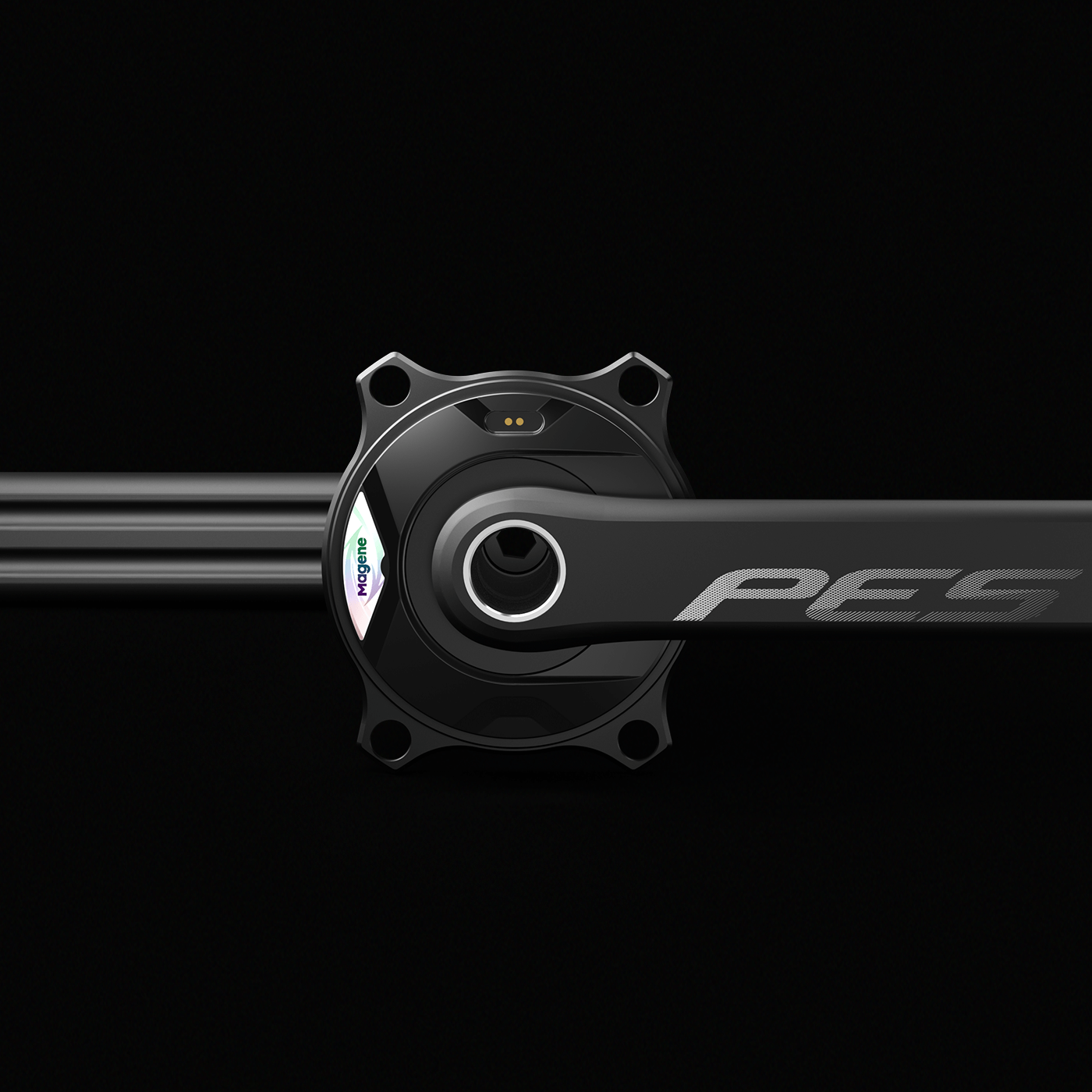

The P515 spider-based power meter employs high-precision strain gauges and acceleration sensors. Combined with built-in intelligent temperature compensation algorithms, it can provide precise and reliable power data anytime and anywhere, even when the environment changes constantly. Extensively tested in harsh environments with highly demanded standards, and with each strain gauge undergoing stress release, the product guarantees a ±1% power accuracy, never letting your effort in vain.

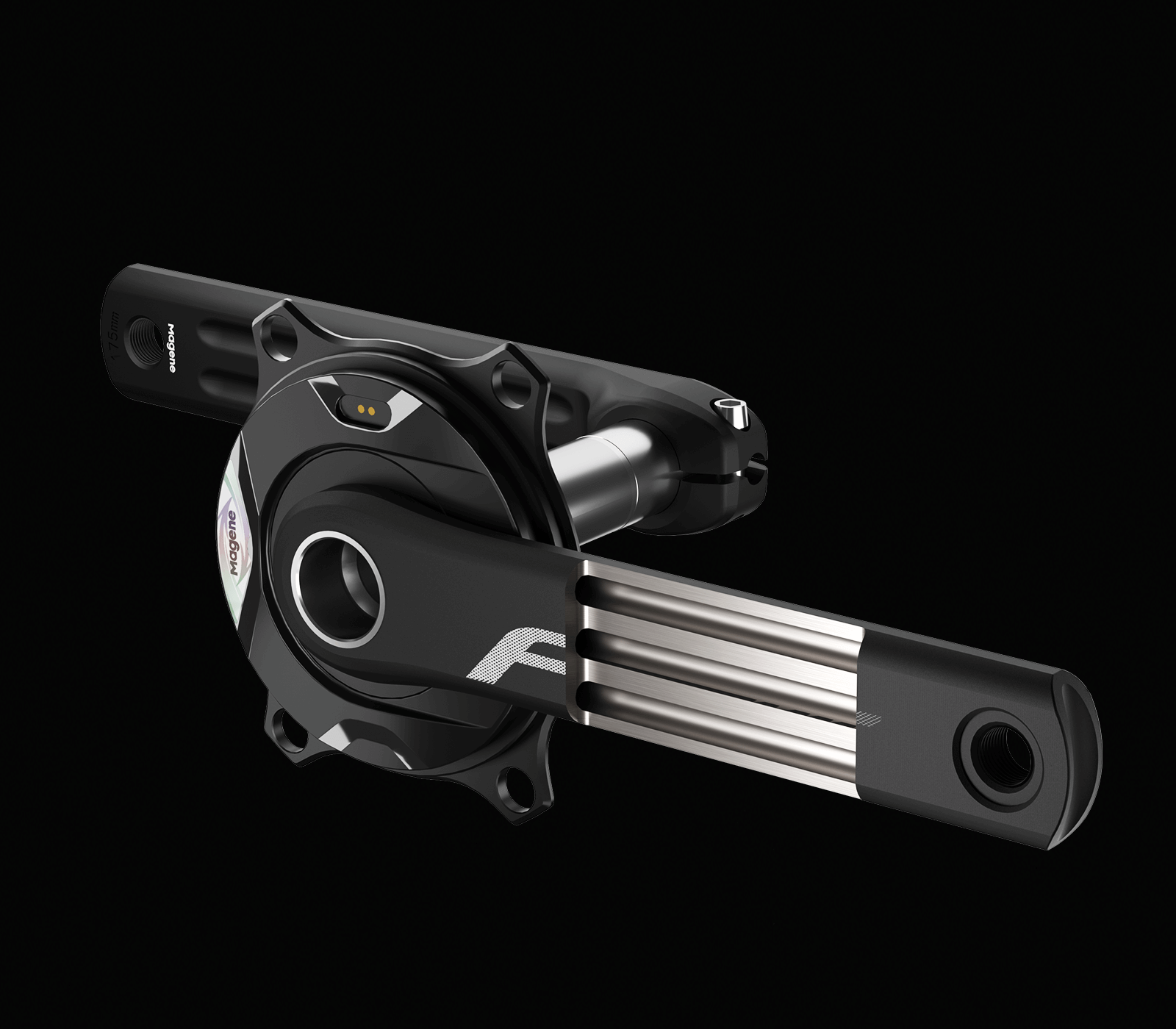

625g Light-weight and High-stiffness Design, Unleash Your Power Hard

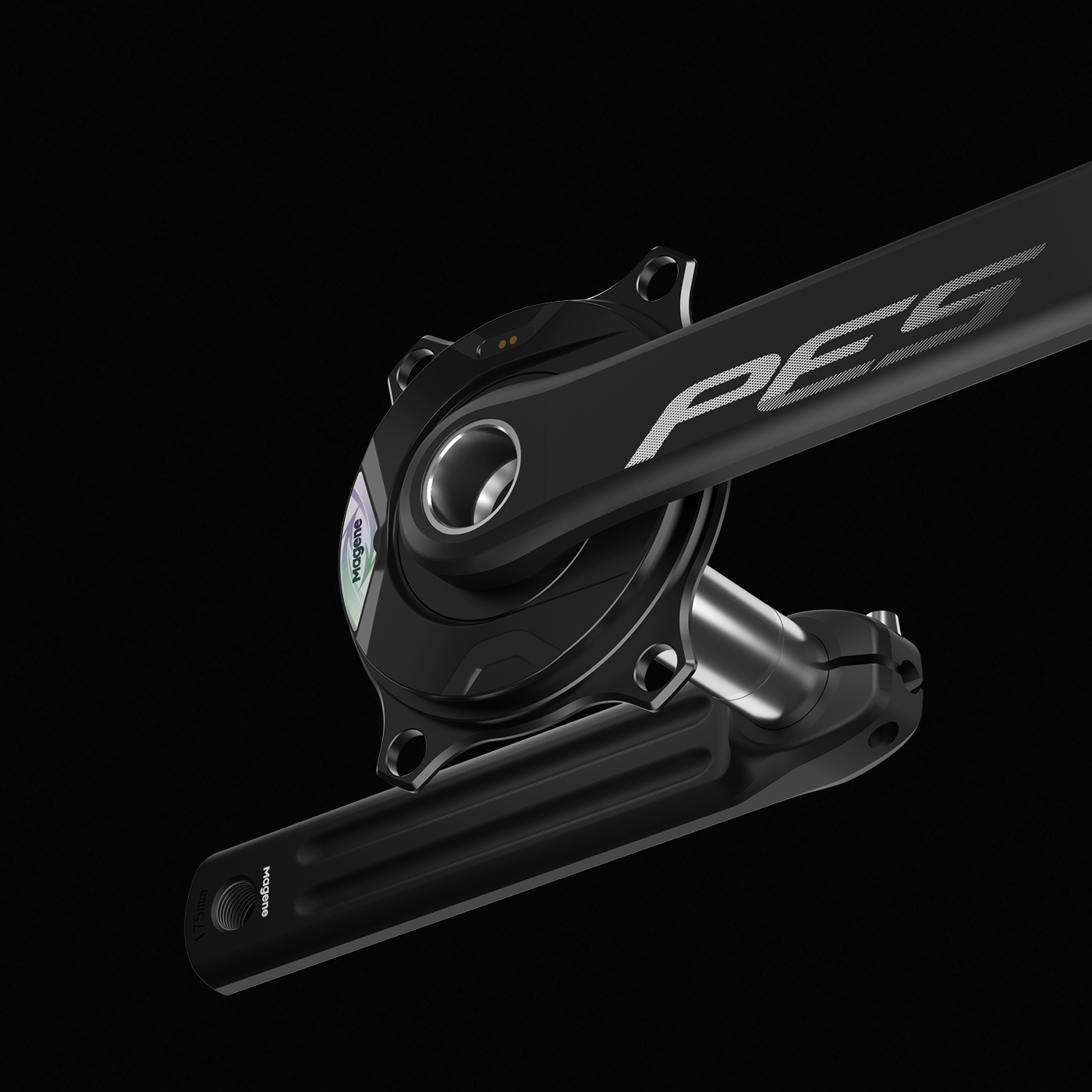

The PES crank adopts a triple hollow channel design. The extensive hollow spaces reduce weight greatly. The crank is integrally molded by applying precise CNC with deep-hole drilling techniques. While optimizing the sealing technique, the force structure is completely enhanced with a symmetric design. The weight is reduced greatly yet without affecting performance. After 100,000 times of harsh pedaling, it still performs excellently.

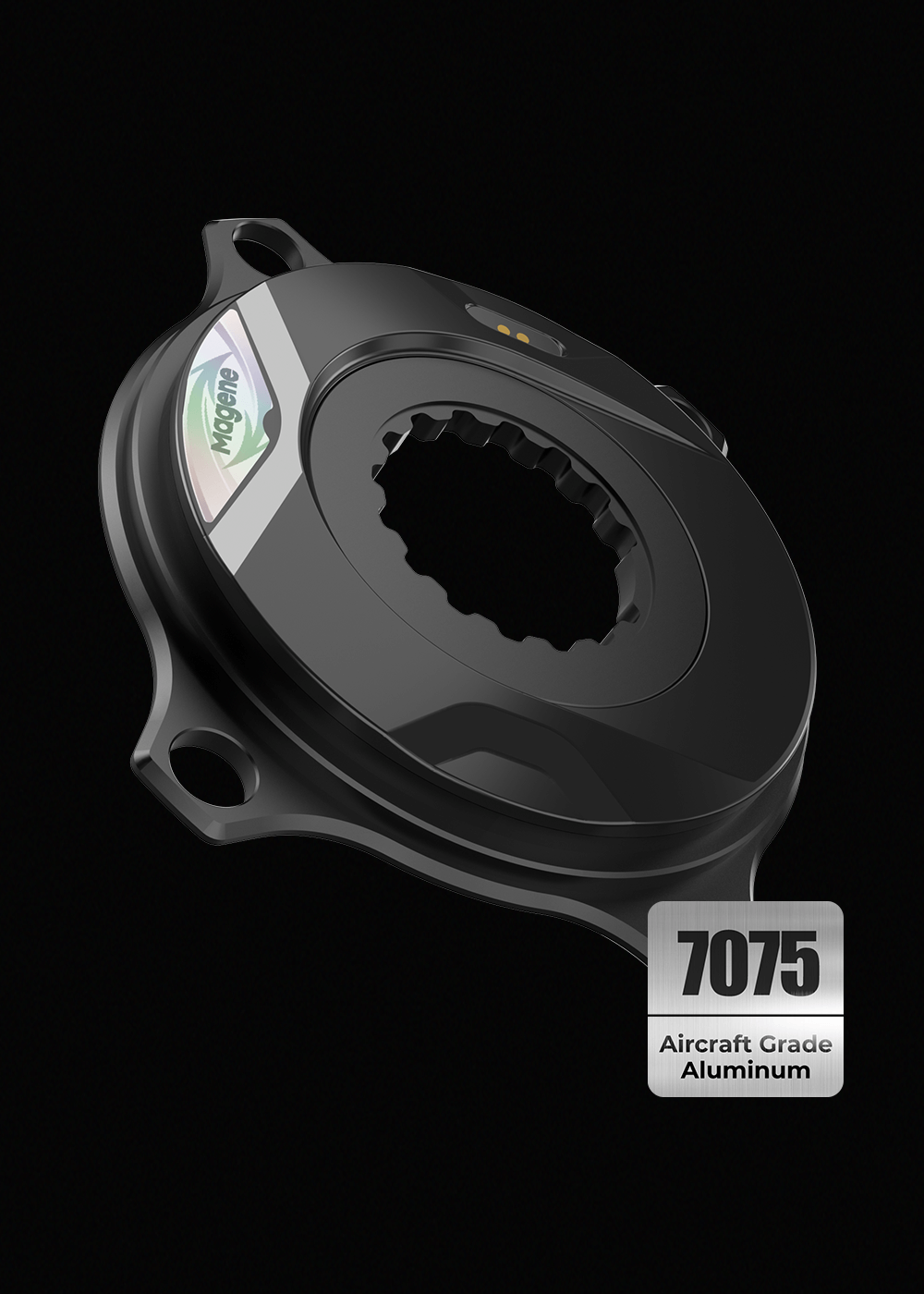

The P515 spider-based power meter is made of 7075 aircraft-grade aluminum. The selection of premium materials balances the weight while achieving great stiffness, making the power meter weighs 99g only.

4 Essential Cycling Data, Evaluate Your Cycling Ability Comprehensively

Power: Sensitive and reliable power measurement, reaching ±1% accuracy.

Cadence: Accurate and stable cadence data measurement always keeps your rhythm in control.

Left and right balance: Know the difference between your left leg and right leg output, so as to enhance training of the weaker leg.

Pedaling smoothness: Analyze power data balance of your pedaling cycles.

240 Hours Long Battery Life, Support Your Enduring Training Day and Night

The P515 spider-based power meter applies a new circuit design to effectively improve power consumption efficiency and reduce power loss during cycling. After fully charged, it can support you for up to 240 hours of long-distance riding and training.

*The battery life is tested in Magene lab and may be affected by environment and temperature.

T

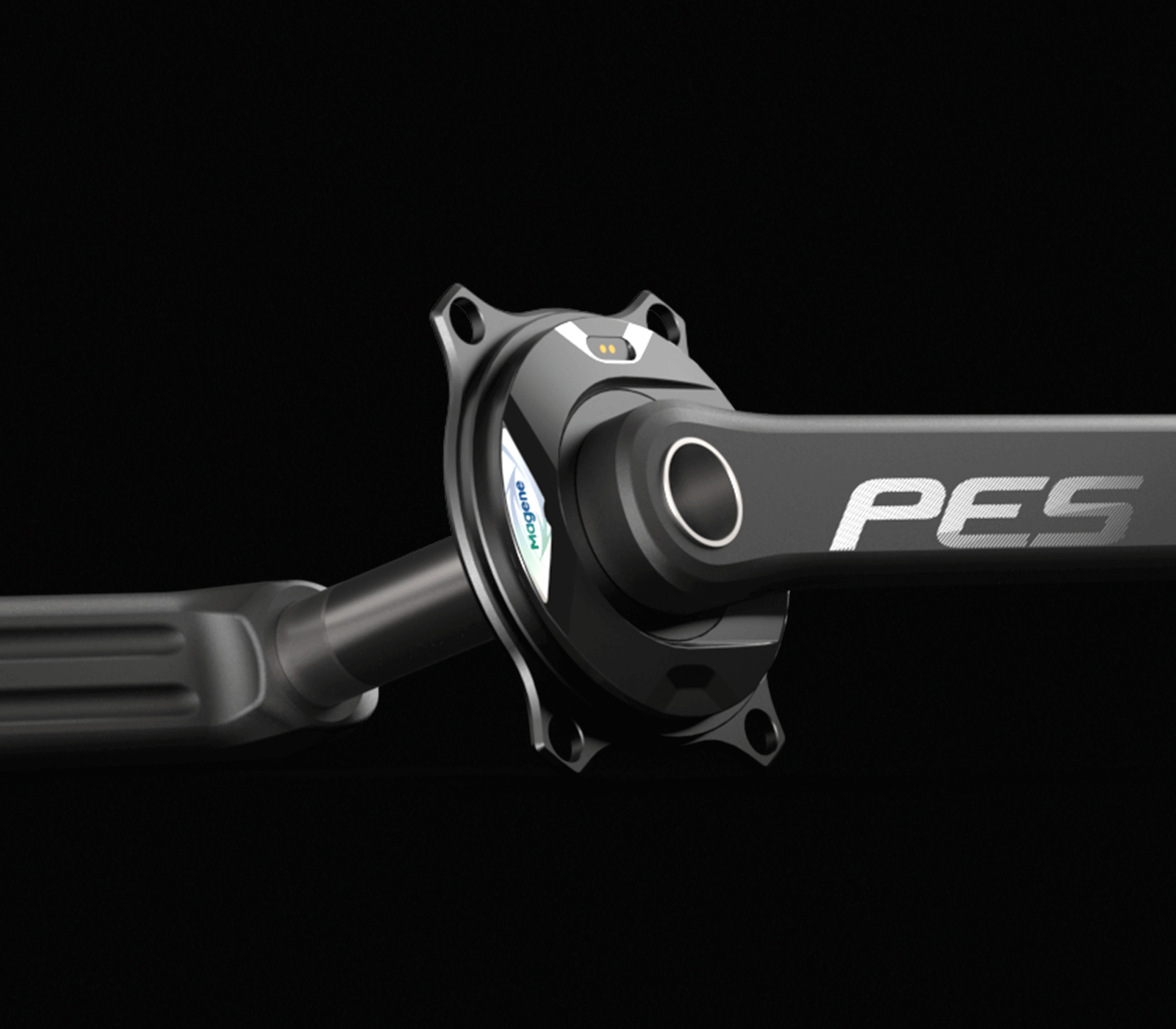

Complete Power Meter Crankset at One Go, Deliver the Ultimate Cycling Experience

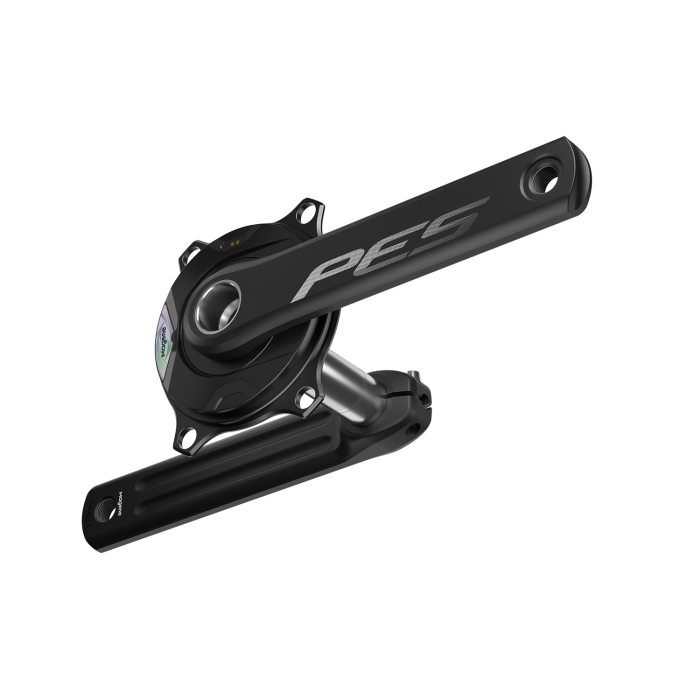

PES P515 power meter set includes P515 spider-based power meter and PES20 crank. The considerate bundle eliminates your confusion on choosing compatible components. Therefore, we could provide consistent and reliable performance and you won’t worry about interference problems caused by a third-party component.

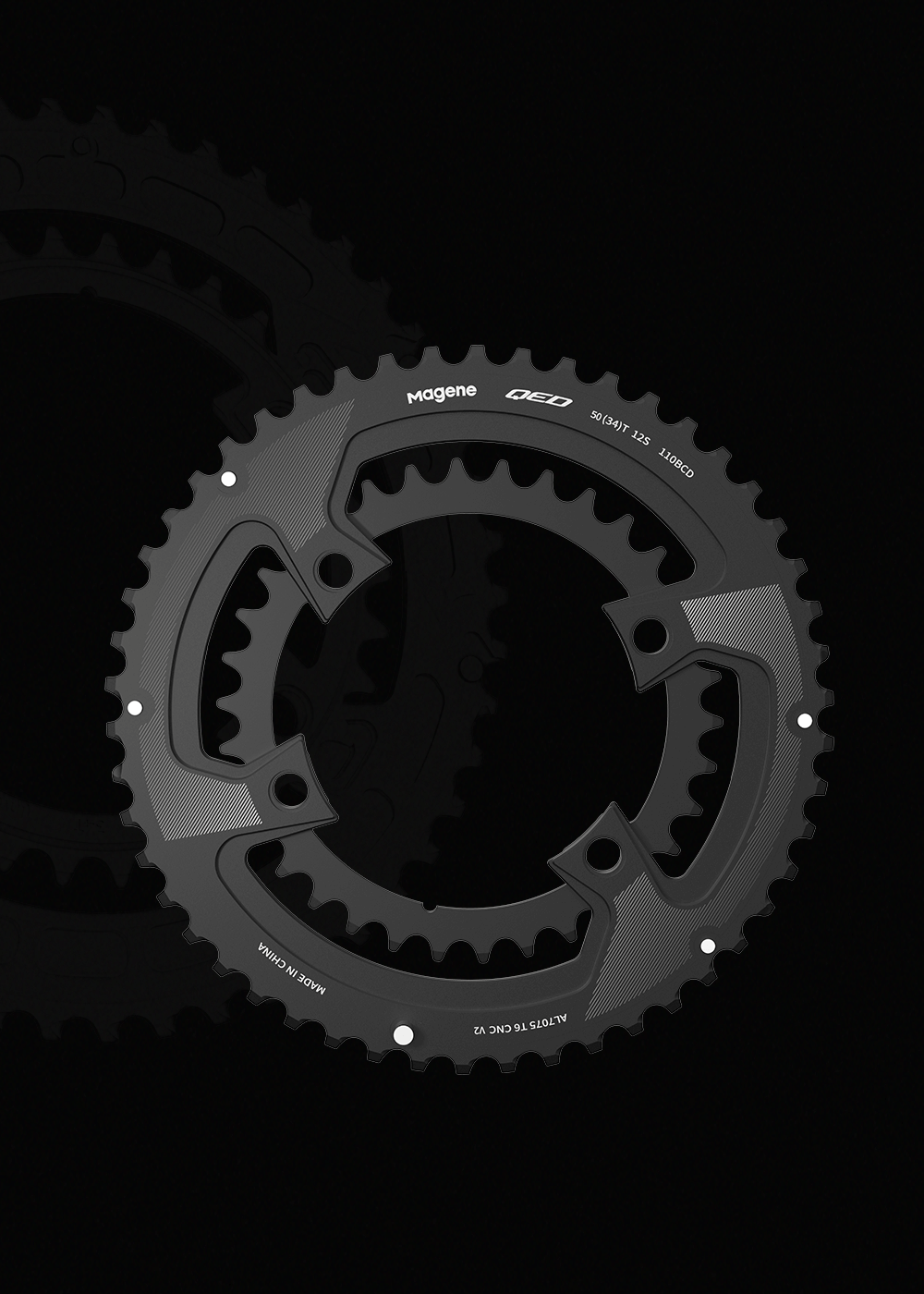

P515 spider-based power meter adopts the widely popular 110BCD four-bolt specification, which has more comprehensive compatibility. In the meantime, we provide exclusive chainring. You can build a complete P515 spider-based power meter crankset in terms of your personal needs with QED split chainring. With Magene original chainring, you will enjoy the enhanced shifting efficiency and a more smooth pedaling experience.

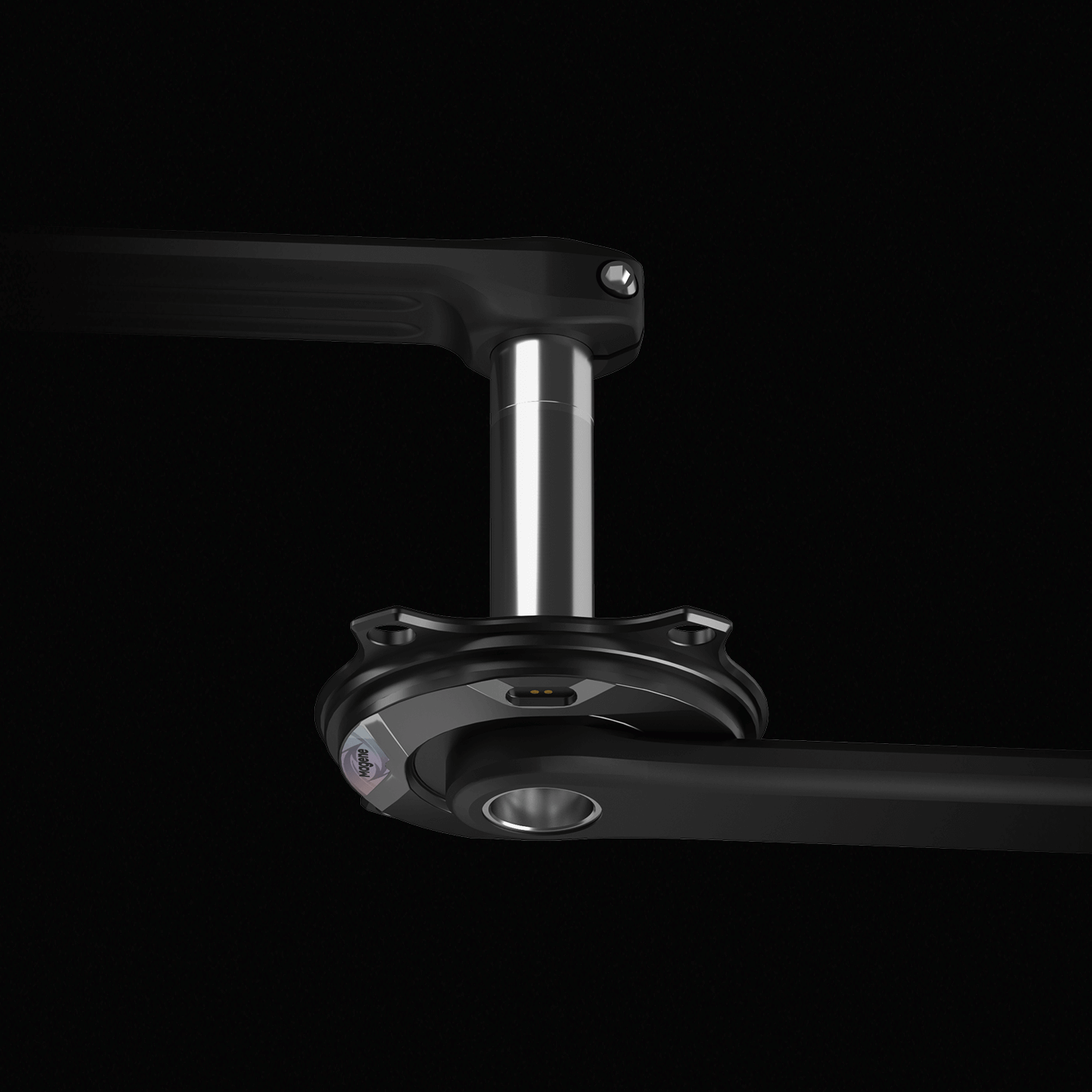

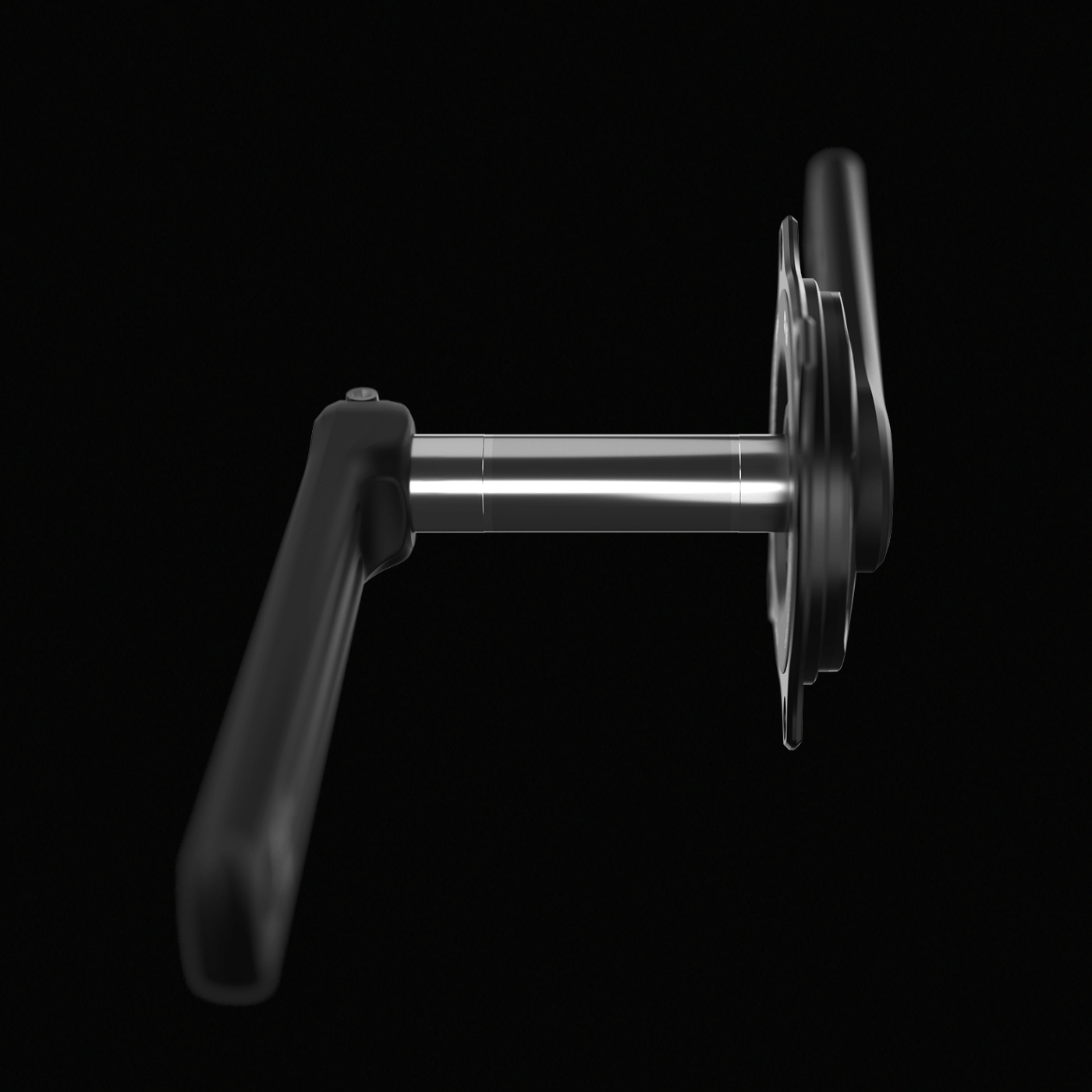

24mm Steel Spindle, Versatile Compatibility with Your Frame

The PES crank features 24mm steel spindle, which is also popular spindle on the market. It’s compatible with standard road bike bottom brackets.

SHIMANO users can install it directly without replacing the bottom bracket.

*Compatible with 68mm-86.5mm standard road bike bottom brackets.

Support Bluetooth, ANT+ Protocol, Record Data in Multiple Terminals

Compatible with various ANT+ and Bluetooth devices, can be connected to major brand bike computers such as Magene, Garmin and Bryton, etc. and training APPs such as STRAVA, Onelap, OnelapFit, Zwift, TrainingPeaks, TrainerRoad, etc. so that you can record data in multiple terminals for one workout.
Spec
Specifications
Model PES P515 Power Meter Set
Weight 625g±5g (170mm)
Crank Length 165mm, 167.5mm, 170mm, 172.5mm, 175mm
Power Accuracy ±1%
Spindle 24mm
Bolt 4 bolts
Bolt circle diameter (BCD) 110 MM
Chainline 44.25mm
Q-Factor 147mm
Power Range 0~2500W
Cadence Range 20~240RPM
Data Function Power, cadence, left-right balance, pedaling smoothness
Calibration Automatic calibration, backpedal calibration, manual calibration
Wireless Protocol ANT+, Bluetooth
Waterproof Grade IPX7
Working Temperature -20℃-50℃
Battery Life 240 hours
Charging Method Magnetic charging
In the box

No Chainring Version

  • P515 spider-based power meter*1
  • Pair of PES Crankarms*1
  • Lock Ring of Conversion Kit*1
  • Magnetic charging cable*1
  • Stickers *6
  • Quick start guide* 1

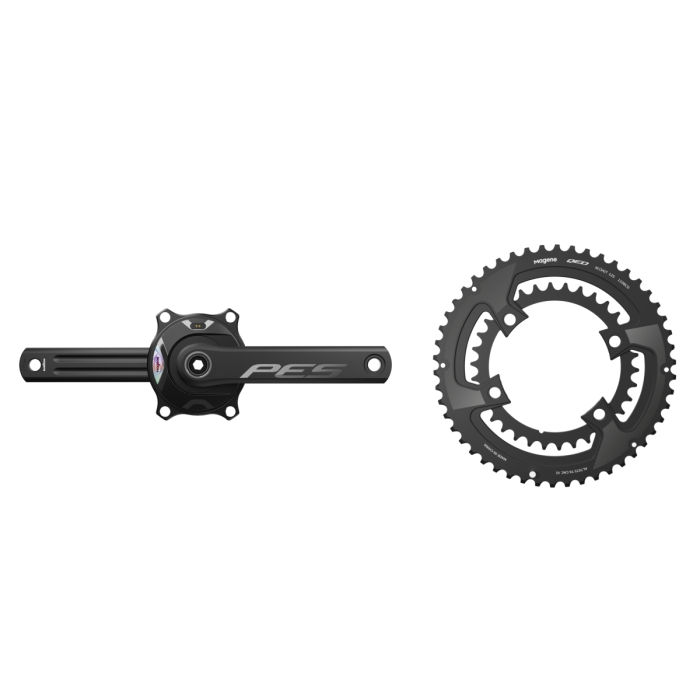

With Chainring Version

  • P515 spider-based power meter*1
  • Pair of PES Crankarms*1
  • Lock Ring of Conversion Kit*1
  • Magnetic charging cable*1
  • Stickers *6
  • Quick start guide* 1
  • Set of Chainring Bolts*1
  • Small Chainring*1
  • Big Chainring*1
